BD general IV extension sets

BD offers a wide range of infusion and extension sets in a variety of configuration to meet the complex needs of infusion therapy.

Overview
Products & Accessories
EIFU & Resources

false

true

BD offers a wide range of extension sets in a variety of configuration to add needed components (filters, y-site ports, anti-syphon valves or flow controllers) or to increase the length of the tubing.

Extension set pressure rated minibore purple striped slide clamp(s) needle-free access t-connector spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.8 mL content sterile *labeled for use with low Pressure power injectors up to 325 PSI and maximum flow rate of 10 mL/second

SKU/REF mxt1003
Extension set slide clamp(s) 1 NAC-y needle-free valve(s) 6" from spin male luer lock. Not made with DEHP. L: 32 in L: 81 cm PV: 3.5 mL content sterile

SKU/REF mx9175
Extension set 2 pinch clamp(s) 2 male luers 2 NAC-y needle-free valve(s) 8", 31" from spin male luer lock. Not made with DEHP. L: 40 in L: 102 cm PV: 7.5 mL content sterile

SKU/REF mx9172
Extension set 1.2 micron filter (1.6 sq. in low protein binding) pinch clamp(s) 1 NAC-y needle-free valve(s) 6" from spin male luer lock. Not made with DEHP. L: 16 in L: 41 cm PV: 5.8 mL content sterile

SKU/REF mx9171
Extension set 0.2 micron filter (1.6 sq. in low protein binding) pinch clamp(s) 1 NAC-y needle-free valve(s) 6" from spin male luer lock. Not made with DEHP. L: 16 in L: 40.6 cm PV: 5.8 mL content sterile

SKU/REF mx9166
Extension set slide clamp(s) 1 NAC-y needle-free valve(s) 1.75" from spin male luer lock kink resistant. Not made with DEHP. L: 8 in L: 20.3 cm PV: 1.2 mL content sterile

SKU/REF mx9060
Extension set pressure rated minibore slide clamp(s) 1 NAC-y needle-free valve(s) 3" from spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.7 mL content sterile *labeled for use with low Pressure power injectors up to 325 PSI and maximum flow rate of 10 mL/second

SKU/REF mx5302
Extension set pressure rated pinch clamp(s) 1 NAC-y needle-free valve(s) 4" from spin male luer lock. Not made with DEHP. L: 8 in L: 20 cm PV: 0.8 mL content sterile *labeled for use with low Pressure power injectors up to 325 PSI and maximum flow rate of 10 mL/second

SKU/REF mx5301
Extension set flow regulator slide clamp(s) 1 NAC-y needle-free valve(s) 7" from spin male luer lock. Not made with DEHP. L: 23 in L: 58.4 cm content sterile

SKU/REF mfs106
Extension set pressure rated minibore purple striped slide clamp(s) spin male luer lock. Not made with DEHP. L: 6.5 in L: 16 cm PV: 0.2 mL content sterile *labeled for use with low Pressure power injectors up to 325 PSI and maximum flow rate of 10 mL/second

SKU/REF me5302

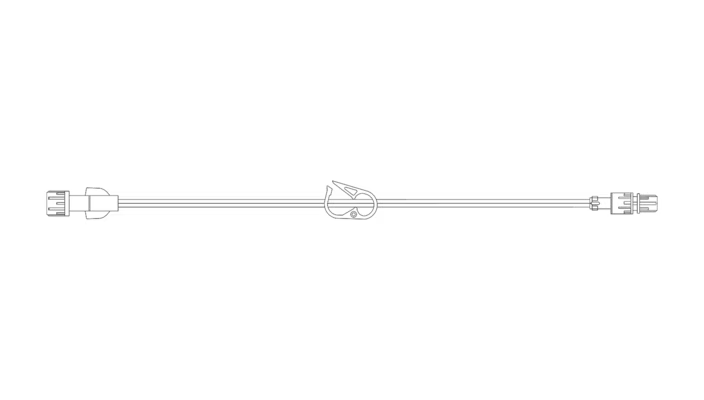

Extension set pressure rated purple striped pinch clamp(s) spin male luer lock. Not made with DEHP. L: 7.5 in L: 19 cm PV: 0.4 mL content sterile *labeled for use with low Pressure power injectors up to 325 PSI and maximum flow rate of 10 mL/second

SKU/REF me5301
Extension set fixed male luer lock. Not made with DEHP. L: 60 in L: 152 cm PV: 9.4 mL content sterile

SKU/REF me2068
Extension set microbore spin male luer lock. Not made with DEHP. L: 72 in L: 183 cm PV: 0.4 mL content sterile

SKU/REF me2059

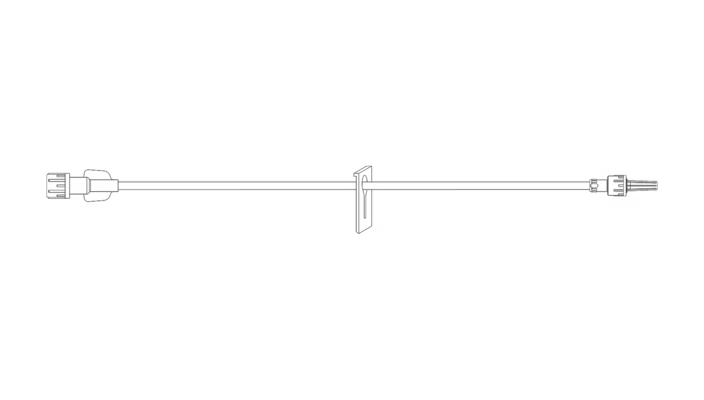

Extension set microbore slide clamp(s) spin male luer lock. Not made with DEHP. L: 60 in L: 152 cm PV: 0.3 mL content sterile

SKU/REF me2020
Extension set minibore removable slide clamp(s) spin male luer lock. Not made with DEHP. L: 60 in L: 152.4 cm PV: 1.8 mL content sterile

SKU/REF me2010
Extension set microbore trifuse 0.2 micron small volume filter (0.25 sq. in low protein binding) 4 pinch clamp(s) 3 female luers spin male luer lock. Not made with DEHP. L: 10 in L: 25 cm PV: 0.6 mL content sterile

SKU/REF me1254
Extension set 0.2 micron filter (0.98 sq. in low protein binding) slide clamp(s) spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 3.2 mL content sterile

SKU/REF me1250
Extension set minibore removable slide clamp(s) standard injection t-connector male luer slip adapter. Not made with DEHP. L: 5 in L: 13 cm PV: 0.3 mL content sterile

SKU/REF me1233
Extension set minibore removable slide clamp(s) standard injection t-connector spin male luer lock. Not made with DEHP. L: 5 in L: 13 cm PV: 0.3 mL content sterile

SKU/REF me1232
Extension set 1.2 micron filter (1.6 sq. in low protein binding) slide clamp(s) spin male luer lock. Not made with DEHP. L: 15 in L: 38 cm PV: 4.8 mL content sterile

SKU/REF me1225
Extension set removable slide clamp(s) spin male luer lock. Not made with DEHP. L: 7 in L: 18 cm PV: 1 mL content sterile

SKU/REF me1223
Extension set minibore removable slide clamp(s) standard injection t-connector fixed male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.3 mL content sterile

SKU/REF me1214
Extension set minibore removable slide clamp(s) fixed male luer lock. Not made with DEHP. L: 36 in L: 91 cm PV: 1.3 mL content sterile

SKU/REF me1110
Extension set slide clamp(s) spin male luer lock. Not made with DEHP. L: 20 in L: 51 cm PV: 2.4 mL content sterile

SKU/REF me1069
Extension set slide clamp(s) spin male luer lock. Not made with DEHP. L: 30 in L: 76 cm PV: 4.9 mL content sterile

SKU/REF me1055
Extension set minibore removable slide clamp(s) spin male luer lock. Not made with DEHP. L: 12 in L: 30.5 cm PV: 0.4 mL content sterile

SKU/REF me1048
Extension set minibore removable slide clamp(s) standard injection t-connector male luer slip adapter. Not made with DEHP. L: 4 in L: 10.2 cm PV: 0.33 mL content sterile

SKU/REF me1046
Extension set minibore removable slide clamp(s) spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.3 mL content sterile

SKU/REF me1032
Extension set minibore bifuse 3 removable slide clamp(s) 2 female luers spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.6 mL content sterile

SKU/REF me1001
Extension set 3-way stopcock (off indicator) spin male luer lock. Not made with DEHP. L: 20 in L: 51 cm PV: 3.2 mL content sterile

SKU/REF m4026
Extension set smallbore spin male luer lock. Not made with DEHP. L: 63 in L: 160 cm PV: 1.6 mL fluid path sterile

SKU/REF c30006
Extension set smallbore anti-siphon valve 2 male luers fixed male luer lock. Not made with DEHP. L: 5 in L: 13 cm PV: 0.5 mL fluid path sterile

SKU/REF c25012
Extension set pinch clamp(s) 2-piece male luer lock. L: 8 in L: 20 cm PV: 1 mL fluid path sterile

SKU/REF c20025
Extension set pinch clamp(s) 2-piece male luer lock. Not made with DEHP. L: 20 in L: 51 cm PV: 3 mL fluid path sterile

SKU/REF c20022
Extension set smallbore fixed male luer lock. Not made with DEHP. L: 30 in L: 76 cm PV: 2 mL fluid path sterile

SKU/REF c20016
Extension set low sorbing 2-piece male luer lock. Not made with DEHP. L: 30 in L: 76 cm PV: 4 mL fluid path sterile

SKU/REF c20014
Extension set microbore slide clamp(s) fixed male luer lock. Not made with DEHP. L: 36 in L: 91 cm PV: 0.4 mL fluid path sterile

SKU/REF 30910
Extension set smallbore 1.2 micron small volume filter (0.25 sq. in low protein binding) slide clamp(s) fixed male luer lock. Not made with DEHP. L: 7 in L: 18 cm PV: 0.5 mL fluid path sterile

SKU/REF 20129e
Extension set 2-piece male luer lock. Not made with DEHP. L: 21 in L: 53 cm PV: 2.9 mL fluid path sterile

SKU/REF 11608375
Extension set smallbore slide clamp(s) spin male luer lock. Not made with DEHP. L: 62 in L: 158 cm PV: 1.5 mL fluid path sterile

SKU/REF 11088483
Extension set smallbore pinch clamp(s) spin male luer lock. Not made with DEHP. L: 110 in L: 279 cm PV: 6 mL fluid path sterile

SKU/REF 10896354
Extension set smallbore bifuse 2 slide clamp(s) 2 female luers spin male luer lock. Not made with DEHP. L: 7 in L: 18 cm PV: 0.3 mL fluid path sterile

SKU/REF 10794983
Extension set smallbore slide clamp(s) spin male luer lock. Not made with DEHP. L: 6 in L: 15 cm PV: 0.3 mL fluid path sterile

SKU/REF 10373772
Extension set microbore amber slide clamp(s) fixed male luer lock. Not made with DEHP. L: 62 in L: 156 cm PV: 0.6 mL fluid path sterile

SKU/REF 10241342
Extension set smallbore pinch clamp(s) fixed male luer lock. Not made with DEHP. L: 234 in L: 594 cm PV: 12 mL fluid path sterile

SKU/REF 10031776
Extension set slide clamp(s) 2-piece male luer lock. L: 8 in L: 20 cm PV: 0.9 mL fluid path sterile

SKU/REF 10026685
Extension set smallbore quadfuse 4 slide clamp(s) 4 female luers spin male luer lock. Not made with DEHP. L: 8 in L: 20 cm PV: 0.7 mL fluid path sterile

SKU/REF 10015817
Extension set 1.2 micron filter (1.72 sq. in low protein binding) spin male luer lock. Not made with DEHP. L: 17 in L: 43 cm PV: 4 mL fluid path sterile

SKU/REF 10012866
Extension set smallbore 0.2 micron small volume filter (0.25 sq. in low protein binding) slide clamp(s) spin male luer lock. Not made with DEHP. L: 7 in L: 18 cm PV: 0.5 mL fluid path sterile

SKU/REF 10011865
